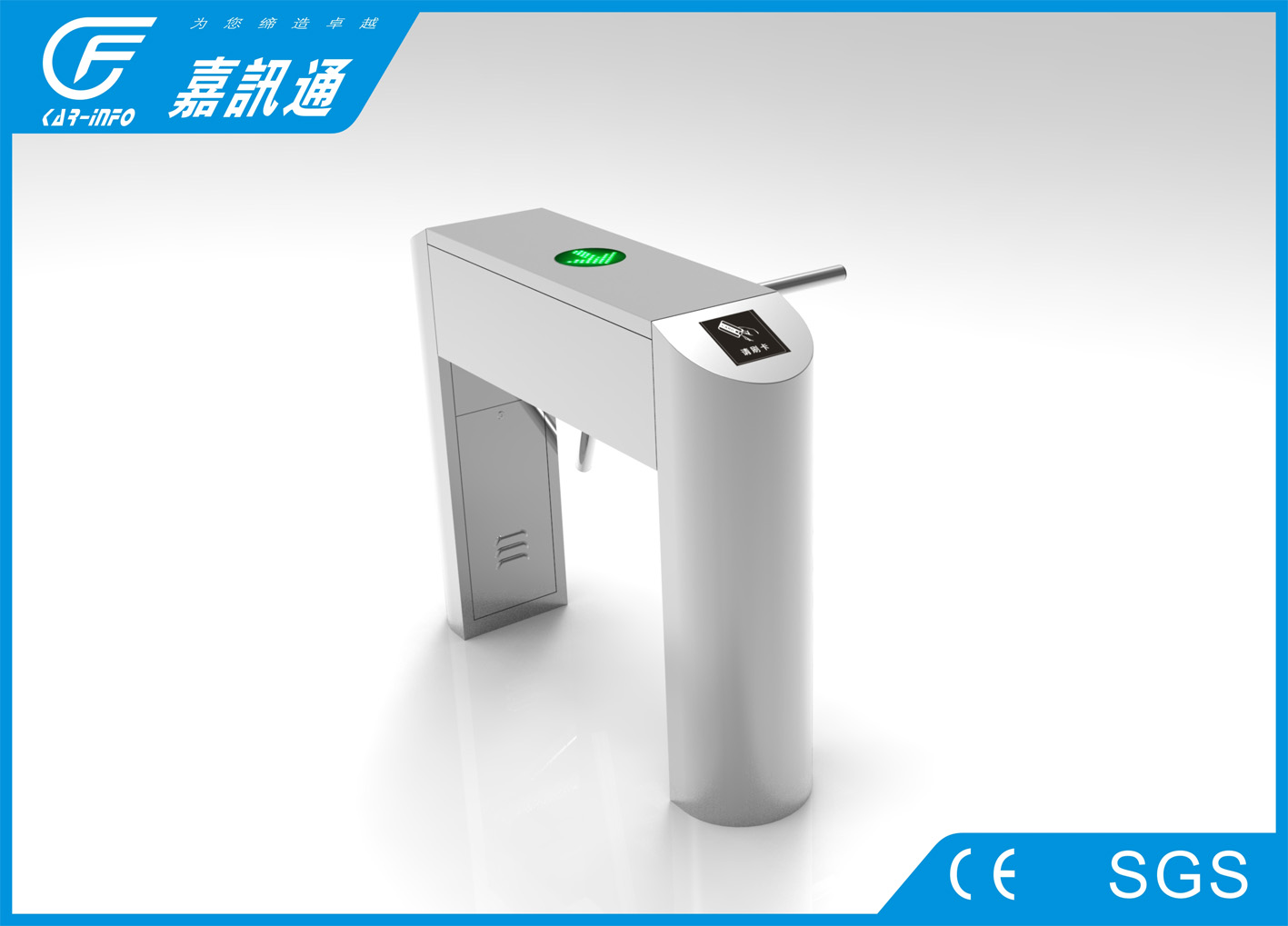

Infared sensor contro; automatic secuirty 304 stainless steel tripod turnstiles gates
Technical specification:
| Power requirements | 110/220-240V,60/50HZ |
| Arms | One sided 304 grade stainless stll |
| Body feature | 304 grade(opt316 grade)stainless steel |
| Operation feature | -20to +90 |
| Control system | Compatible all access control system that provide dry contact |
| Operation | Manually operated bi-direction system or can one direction |
| Emergency mode | System allows free passage in emergency mode and in case of the power failure |
| Standard Feature | Direction and status indicators on top and side |
Scope of application:
For one-way or two-way flow control the import and export channels.
Stations, terminals, attractions import and export channel
Exhibition, swimming pool and other check-in channel
Area, factories, import and export enterprises and attendance, access control, consumption management
Special access control.
Turnstiles Gate Operation
Single passage in one direction
Free passage in one direction
Single passage in each direction
Free passage in both directions
Always locked (closed for entry and exit)
Lock-chamber access mode for additional video or biometric identification when increased an access control is required (for full height rotors only)
The operating modes are set with the remote control panel or by a command from access control system
Main feature:
1. built-in control board or remote control unit supplied as standard
2. models for indoor and outdoor application (under shelter)
3. models with anti-panic barrier arms
high throughput rate
4. bi-directional passage control
5. LED directional indication / status lights
6. Safe supply voltage 12 – 36V
7. Key override control for emergency situations
8. inertia-free and smooth rotation mechanism
