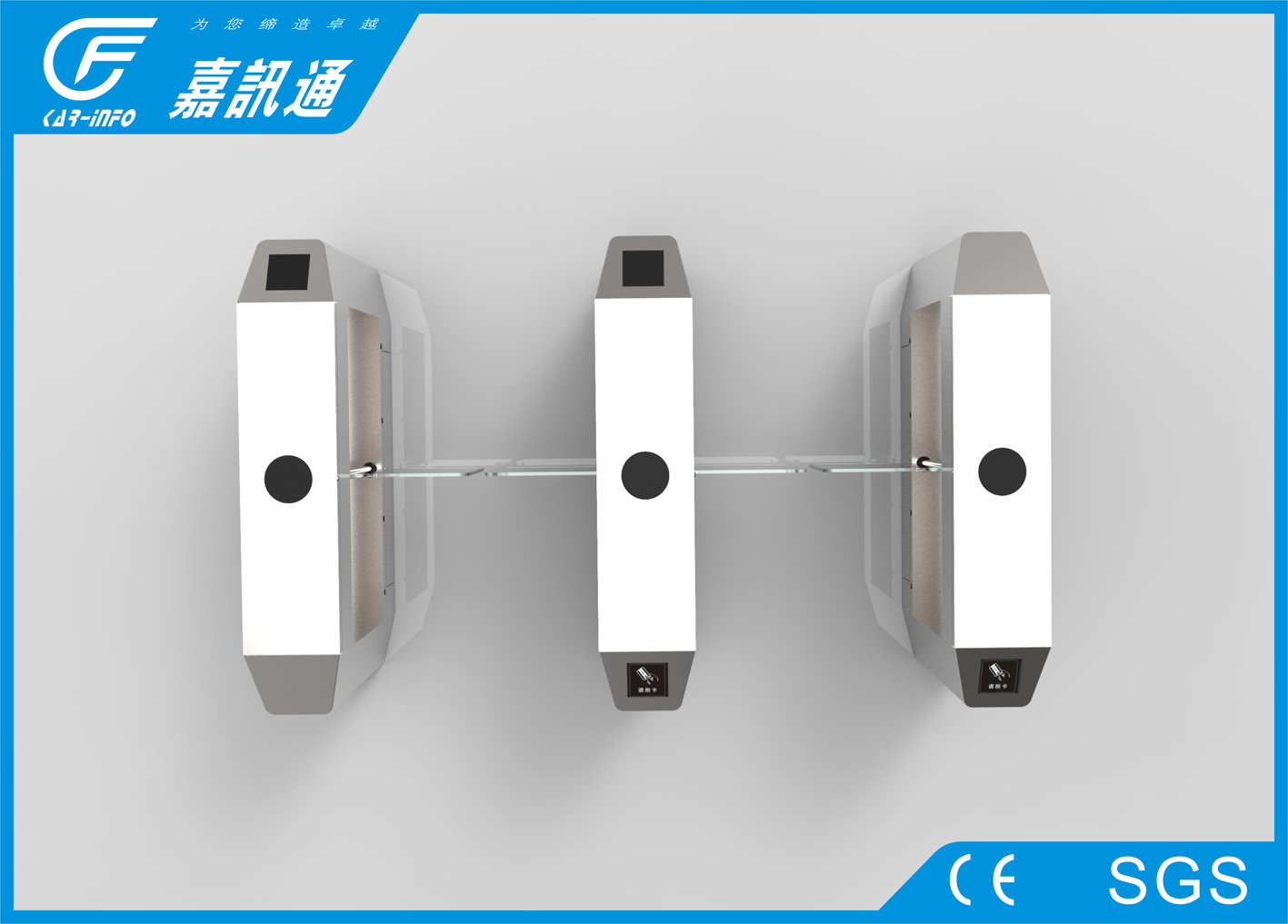

Electro Mechanical Pedestrian Swing Gate , Outdoor Gym Turnstile Security Doors

Name: Electro Mechanical Pedestrian Swing Gate Outdoor Gym Turnstile Security Doors
Brand: Jiaxuntong
Price: 1 USD

Brand Name : Jiaxuntong

Model Number : BD-T501

Certification : CE

Place of Origin : Made in China

MOQ : 1 set

Payment Terms : T/T

Supply Ability : 500set/ month

Packaging Details : wooden package

Product name : l Pedestrian Swing Gate

Housing size : 1200*280*980

Thickness Housing : 1.5mm

Working voltage : AC220± 10%

Working enviroment : outdoor

Passing Speed : 40persons/min

Contact Now

Electro Mechanical Pedestrian Swing Gate , Outdoor Gym Turnstile Security Doors

Product Description

Technical Data	Unit	T501
Passage width	mm	<900
Throughput rate	p/m	35
Power supply	V(ac)	100-240
Operational voltage	V(dc)	24
Max power consumption	w	35
Frequency	hz	50-60
prectection level	ip	>44
Working temperature	degree	-25 to +70
Dimension excluding bars	mm	1400X250X980
Net weight including bars	Kg	80

Main Features

Swing Barrier

1) A compact electro-mechanical design with unique drive and a self-lock mechanism
2) Automatic detection for malfunctions
3) Input interface available for dry contact and switch signal connection
4) Adjustable auto-delay closing
5) Infrared photocells for safety access
6) Alarm for unauthorized access and no access againsl passenger How
7) Auto-closing when power on
8) Free access when power off
9) Adjustable access directions
10) Emergency interface available
11) Traffic lighl indicating passenger access
