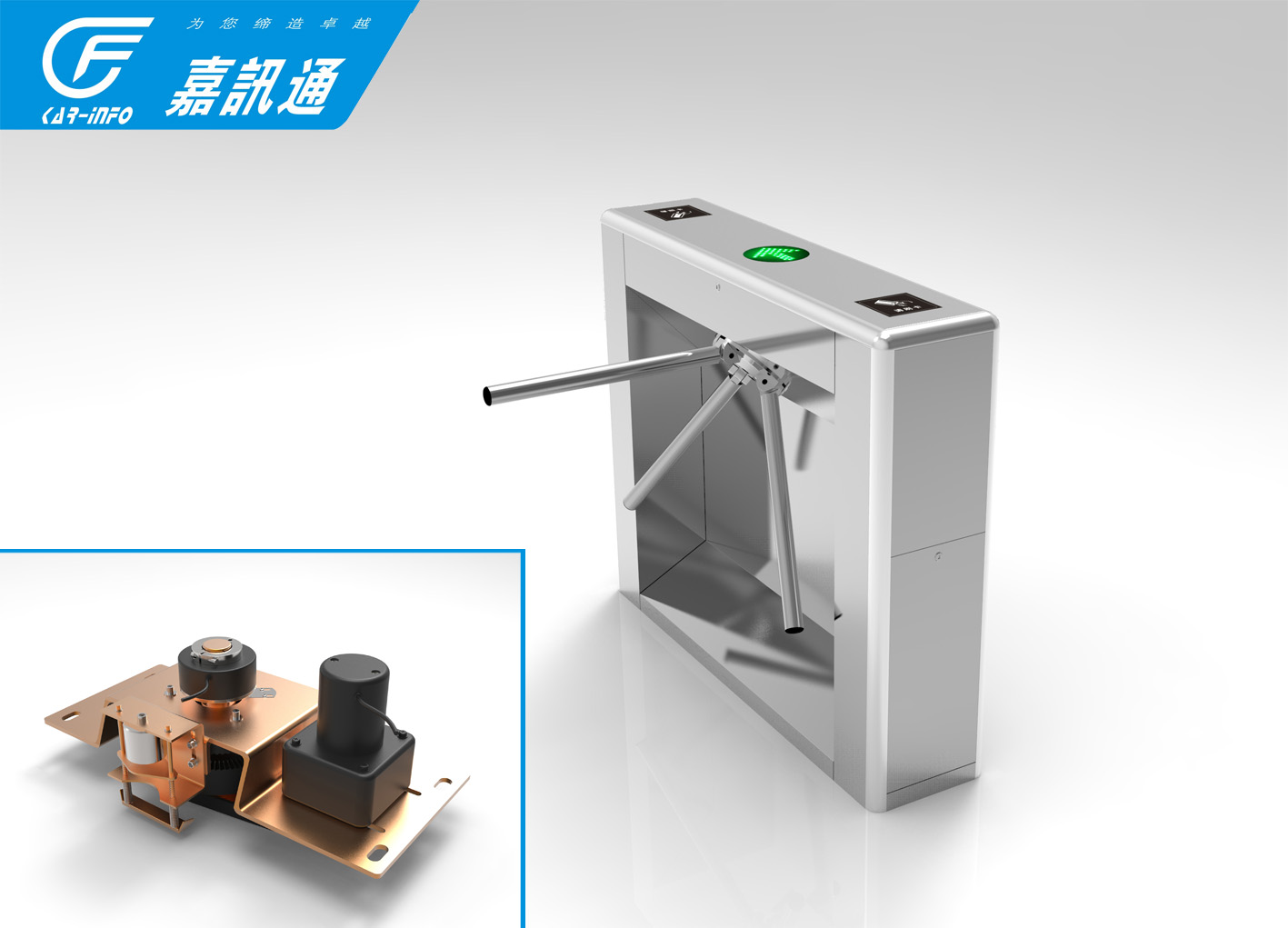

Full Automatic Vertical Tripod Turnstile Bi - Direction Long Service Life For Scenic Spots
Descripition :
It takes care of access control in a wide variety of situations, supporting reception staff in their work. Our proven control systems have no problem managing pedestrian flows, even at peak times.
In emergencies, the tripod barrier designs with collapsible bars in both directions create an escape route and hence offer greater safety than those without. Besides, the tripod barrier bars can be reset automatically to the normal position by authorised personnel as soon as the emergency is over.
Versions with collapsible arms provide free escape routes in both directions in emergencies. Thanks to a patented system, the collapsed arm can be automatically reset after the emergency situation has passed. This is activated by authorised staff.
Application
Government-enterprise office buildings, sports arenas, exhibition halls, industrial parks and scenic spots etc.
Our product advantages
1. Technical advantages: brushless DC servo drive technology, special lane detection sensor, tracking detection algorithm of passing logic;
2. Functional advantages: tailgating detection, passing protection, successive passing, operating mode and passing mode;
3. Sophisticated manufacturing process;
4. Long service life, high reliability;
5. Customization, good after-sale service.
Technical specification
| Description | Parameters |
| Lane Width | 550-570mm |
| IP | IP54 |
| Pass Speed | 25-30 persons/min |
| Power supply | AC220V/110V,50/60Hz |
| Drive Mode | Motor drive |
| Max Power Consumption | 200W |
| Opening time | 0.06S |
| Humidity | ≤90% coagulation free |
| Noise | ≤50dB |
| Service Life | 3,000,000 cycles |
| Outside packing | 110x68x43 cm |
| Working Environment | -20°C~+60°C |
| Gross Weight | 65KGS |
