Library Drop Arm Turnstiles Long Service Life , Museum Half Height Turnstile High Stablility

Library Drop Arm Turnstiles Long Service Life , Museum Half Height Turnstile High Stablility

1. Functions & Features

1) Stainless steel housing

2) Bi-direction pass

3) Arms auto drop when power off

4) Arms auto rise up when power on and auto stop on obstacle

5) Traffic light indicator

6) DFID interface

7) Photoelectric inspection

8) RS485socket, LAN socket

9) If the passenger does not pass in valid time, the passage will be locked up again.

The valid passing time can be set up by operator.

10) Passenger counter (optional)

2. Technical Data

Voltage: 220V±10%, 110V±10%

Voltage: 50/60Hz

Control Circuit: DC12V

Consumption: 30W

Passing Speed: ≤35 Persons/min

Working Temperature: -20 ~55

Protection Gate: IP54

Communication Socket: RS232 standard socket/LAN socket

4. Description

The turnstile features radio-transparent top covers made of ABS-plastic for concealed mounting of proximity card readers inside the housing. The card reader operating zones on each side of the top cover are indicated with special pictograms. The top covers are also completed with pictorial screens, indicating turnstile operation modes.

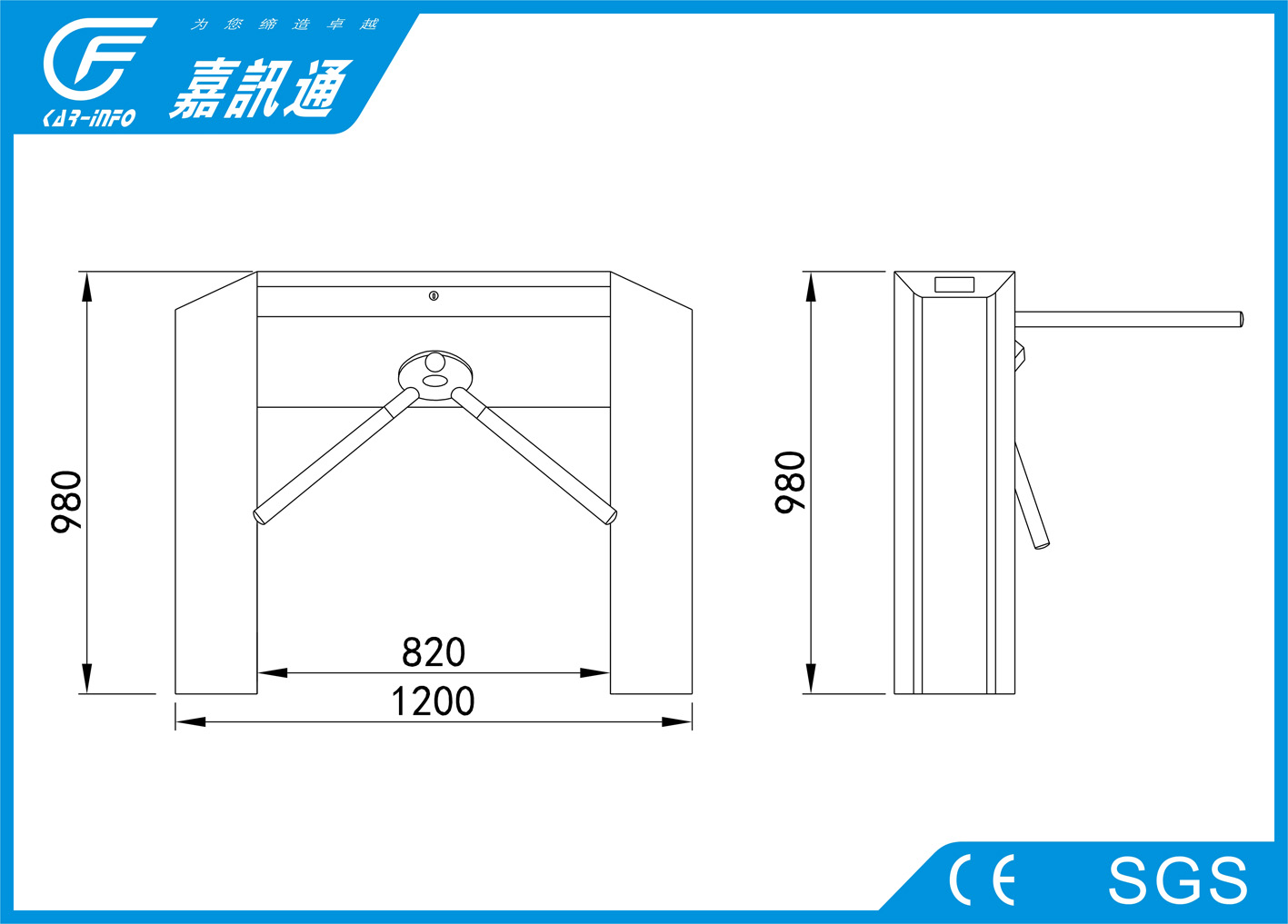

Turnstile has a comfortable passage zone width (560 mm).

5.Service

12 months warranty life-time

We can accpet 50%T/T then prepared the goods for you , 50% before delivery

Free technical training
