ID Reader Vertical Tripod Turnstile Optional Passage Width 600mm 35 Persons / Min

Name: ID Reader Vertical Tripod Turnstile Optional Passage Width 600mm 35 Persons Min
Brand: Jiaxuntong
Price: 490 USD

Brand Name : Jiaxuntong

Model Number : CF1200-D2

Certification : CE

Place of Origin : Made in China

Packaging Details : wooden package

MOQ : 1 set

Price : 490-570USD/set

Payment Terms : T/T

Supply Ability : 300 set/month

Delivery Time : 3 days

product name : automatic tripod turnstiles

Tripod gate power supply : AC220V/110V

Turnstile working environment : Indoor or out door

Oringinal place : China

Weight : 70KG

Color : Optional

Contact Now

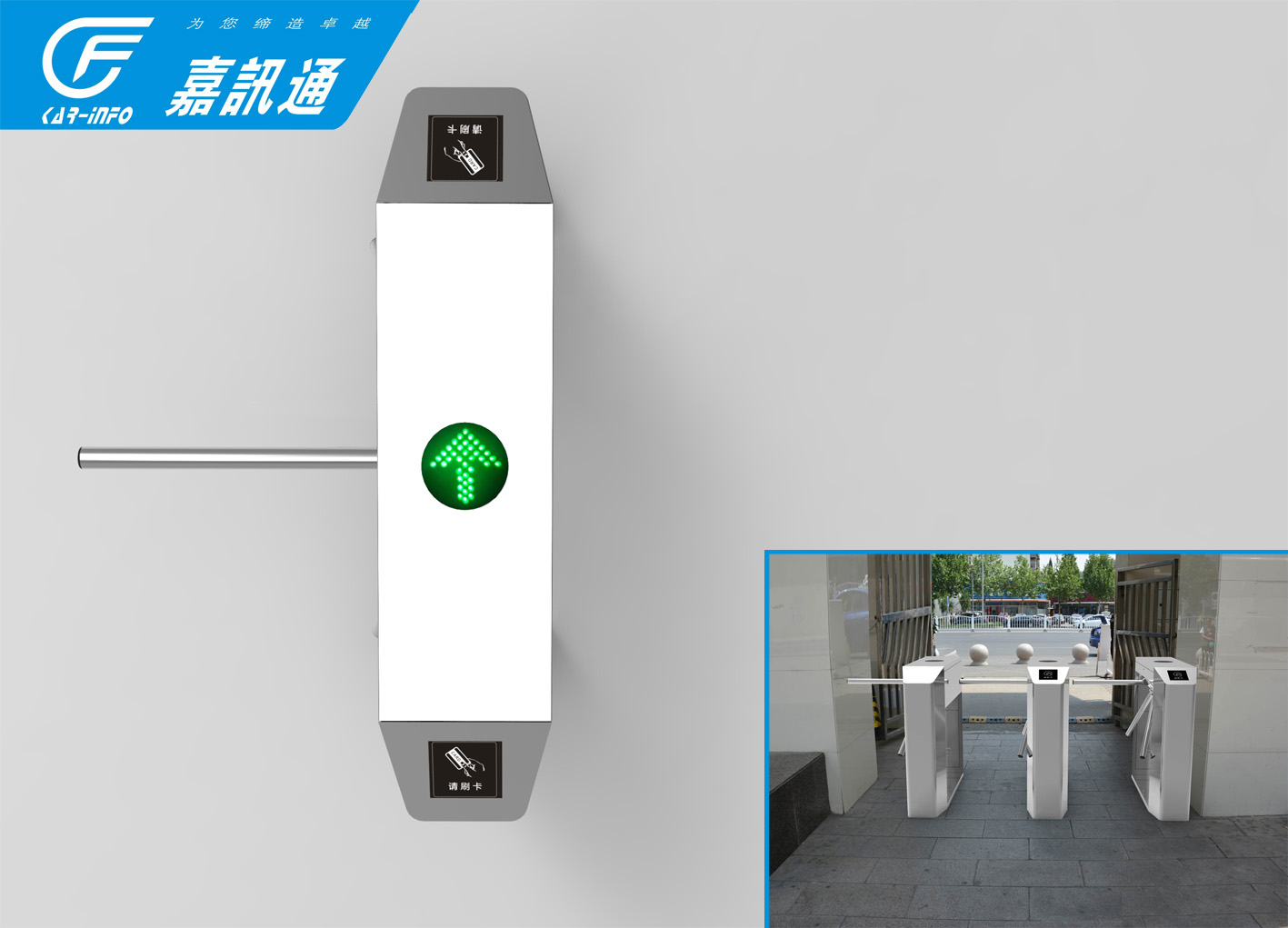

Stainless Steel Dual Direction Automatic ID Reader Vertical Tripod Turnstile

tripod turnstile Competitive Advantages:

1. Can open the turnstile by two input signals (signals can be input by access controller, button or other equipments)

2. Direction guide function, when the turnstile is ready to read card, the yellow light in the
middle will turn one; after reading card and ready for passing, the upper blue light will turn
on; if try to push the railing without permission, the red light will turn on

3. Single direction or double direction optional

4. Railing will be off when power off

5. Counting function, if read the card for N times, N persons can pass before the railing close, N<=8(optional function)

6. Voice prompt and display screen available (optional)

7. External counter can be connected to count number of passed people (optional)

8. RS485communication, PC command through serial port is allowed (optional)

9. Alarming output for pushing the railing without permission(optional)

Tripod Turnstile Parameters:

Power Supply	AC220V±10V ,50Hz / AC110V±10V ,60Hz
Power Consumption	100W
Temperature	-15 to 60 degrees
Humidity	<95%, without concretion
Passage Width	600mm
Passing Speed	35 persons/min (normal open), 30persons/min (normal close)
Arm Open/Close Time	2s
Input Interface	+12V electrical signal or impulse signal with width more than 100ms, drive current >10mA
Communication Interface	RS485 (Distance: <=1200m) / TCP/IP
Working Environment	Indoors or outdoors with shed
