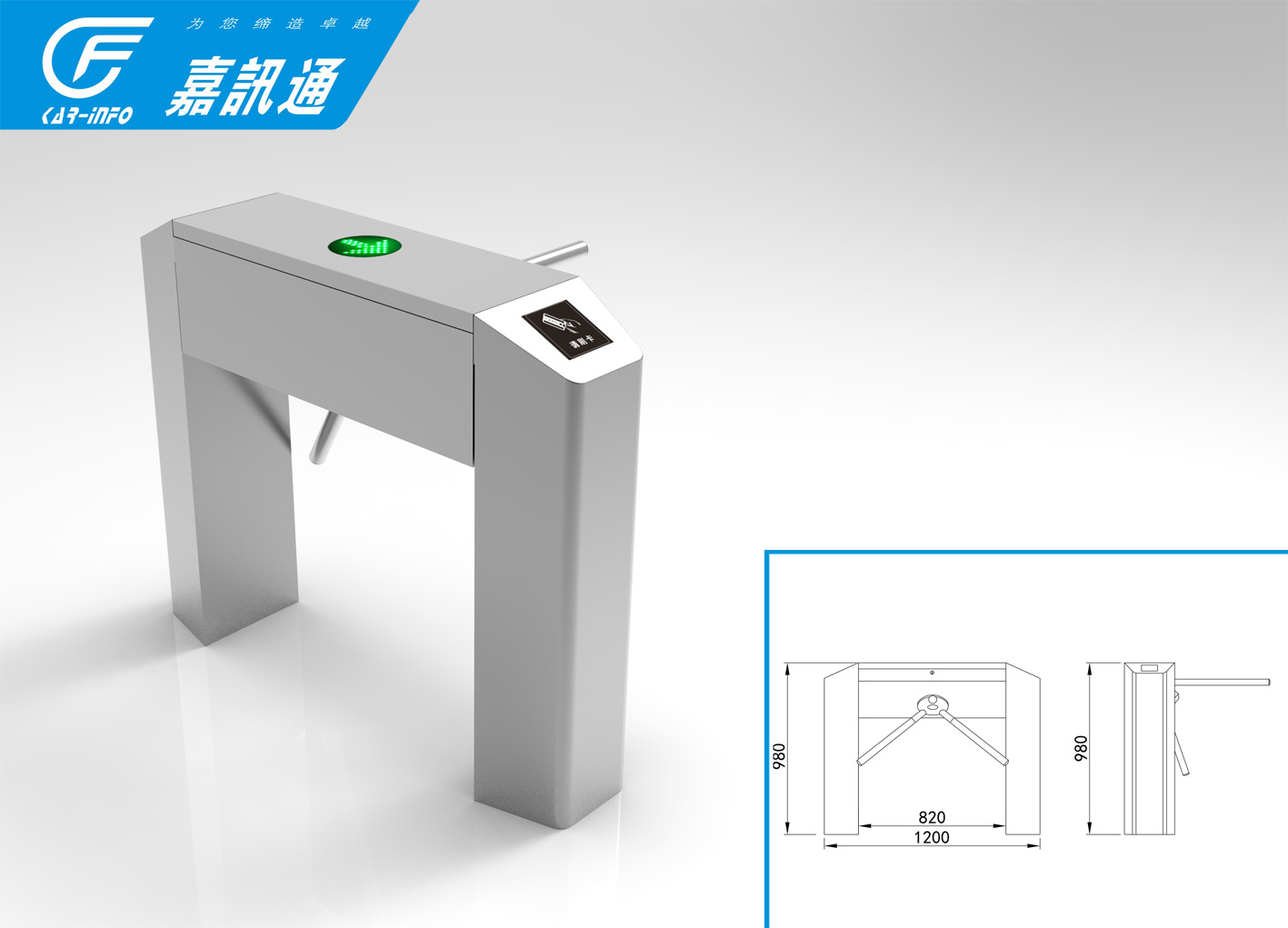

Rfid Card Reader System Office Building Tripod Turnstile Access Control
Applications:
Bus Station
Exhibition
Airport
Subway
Government
Supermarket
Apartment
Factory
Museum
Park and so on
Quick details:
1. Framework:304# Stainless Steel
2. Single direction or bidirection
3. 3groups of infared sensor
4. NO/NC two models for option to relieve heavy traffic
5. Dynamic super bright LED display to show the direction
Competitive Advantages:
1. Can open the turnstile by two input signals (signals can be input by access controller, button or other equipments)
2. Direction guide function, when the turnstile is ready to read card, the yellow light in the
middle will turn one; after reading card and ready for passing, the upper blue light will turn
on; if try to push the railing without permission, the red light will turn on
3. Single direction or double direction optional
4. Railing will be off when power off
5. Counting function, if read the card for N times, N persons can pass before the railing close, N<=8(optional function)
6. Voice prompt and display screen available (optional)
7. External counter can be connected to count number of passed people (optional)
8. RS485communication, PC command through serial port is allowed (optional)
9. Alarming output for pushing the railing without permission(optional)
Parameters:
| Power Supply | AC220V±10V ,50Hz / AC110V±10V ,60Hz |
| Power Consumption | 100W |
| Temperature | -15 to 60 degrees |
| Humidity | <95%, without concretion |
| Passage Width | 600mm |
| Passing Speed | 35 persons/min (normal open), 30persons/min (normal close) |
| Arm Open/Close Time | 2s |
| Input Interface | +12V electrical signal or impulse signal with width more than 100ms, drive current >10mA |
| Communication Interface | RS485 (Distance: <=1200m) / TCP/IP |
| Working Environment | Indoors or outdoors with shed |
